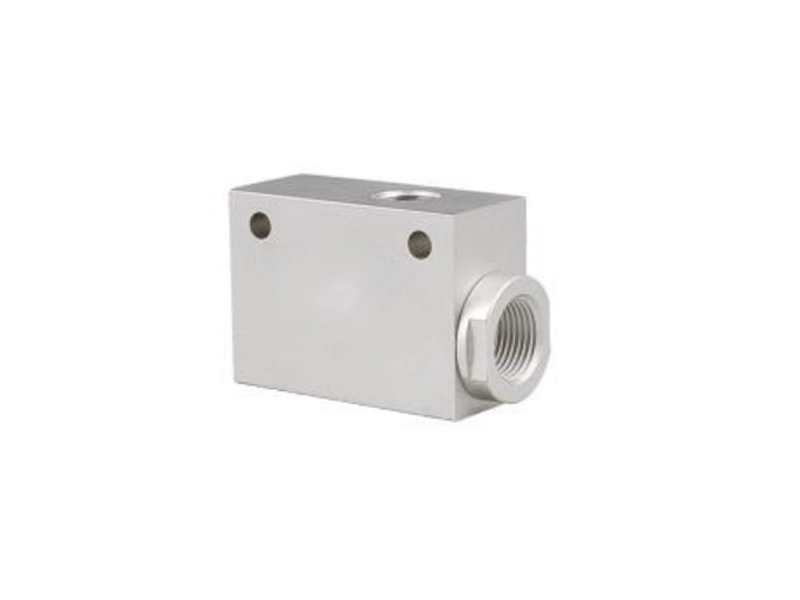

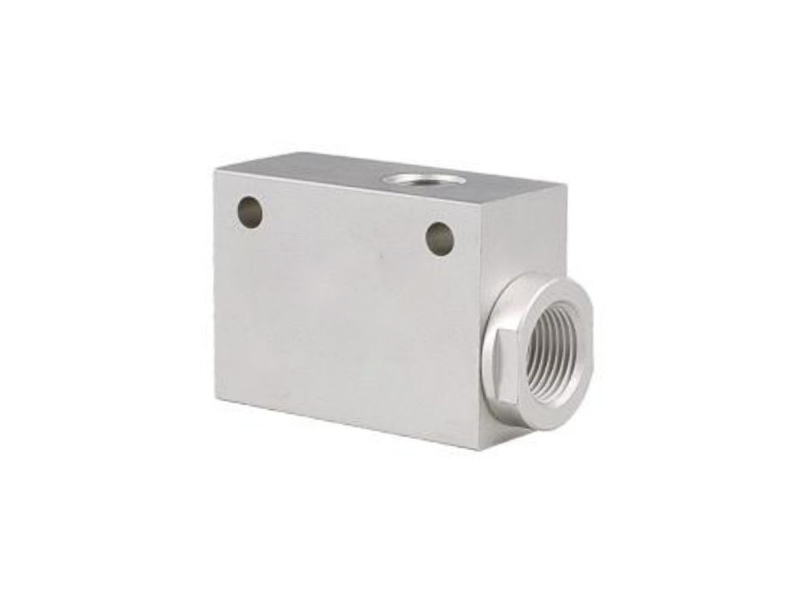

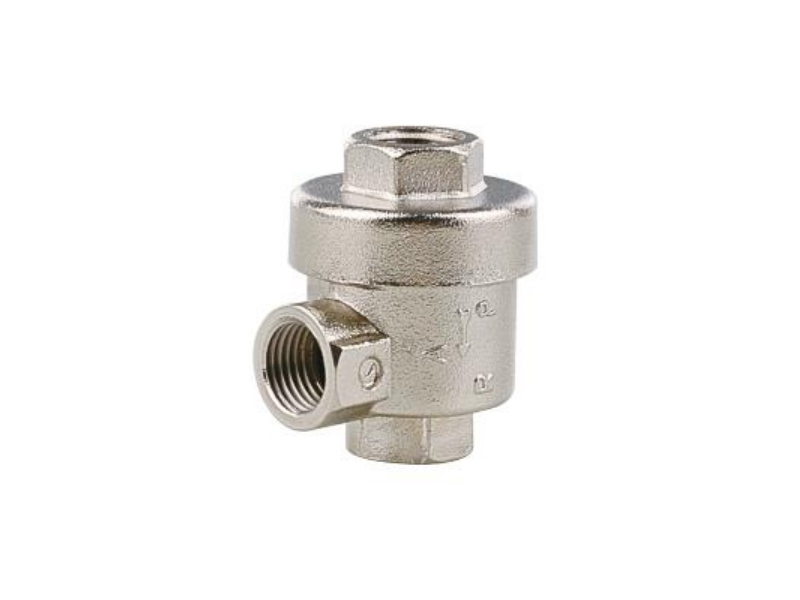

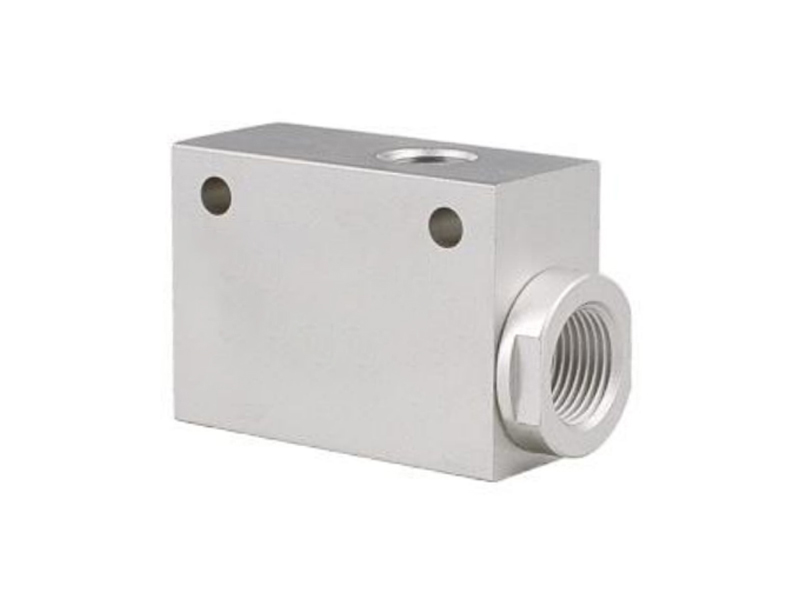

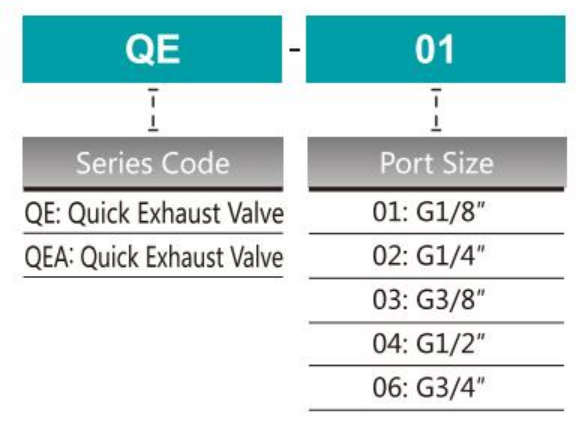

Bestellcode

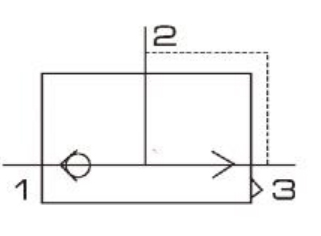

Symbol
Spezifikation
|
Model |
QE-01 |
QE-02 |
QE-03 |
QE-04 |
QE-06 |
|
Anschlussterminalgröße |
G1/8 " |
G1/4 " |
G3/8 " |
GL/2 " |
G3/4 " |
|
Effektiver Querschnittsbereich |
16 mm² |
27,5 mm² |
28 mm² |
71 mm² |
72,5 mm² |
|
Arbeitsmedium |
Luft |
||||
|
Arbeitsdruck |
0 ~ 1,0 mPa |
||||
|
Umgebungstemperatur |
-20 〜70 ℃ |
||||

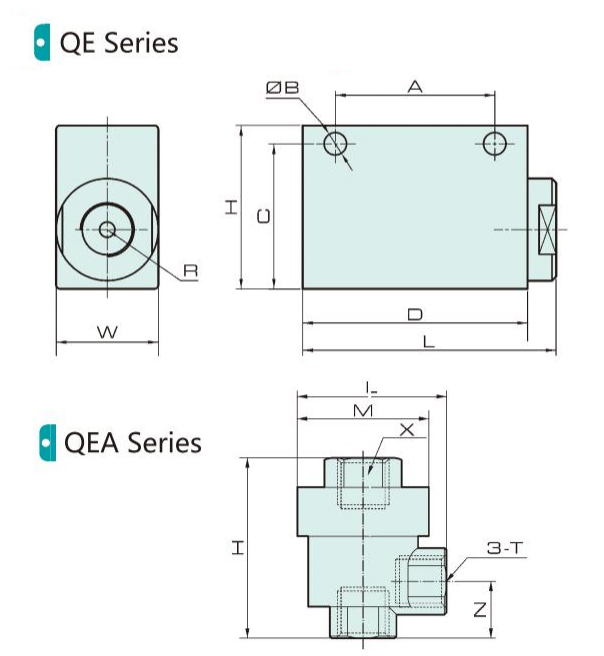

Gesamtdimension
Dimension
|
Model/Symbol |
R |
Bohrung |
L |
W |
H |
A |
B |
C |
D |
|
QE-01 |
GL/4 |
GL/8 |
46 |
20 |
32 |
30 |
4.3 |
27 |
40 |
|
QE-02 |
G3/8 |
GL/4 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-03 |
G3/8 |
G3/8 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-04 |
GL/2 |
G3/8 |
52.3 |
28 |
36 |
- |
- |
- |
48 |
|
QE-06 |
G3/4 |
G3/4 |
98 |
38 |
64 |
60 |
8.5 |
51 |
90 |
|
Model/Symbol |
T |
H |
L |
M |
N |
X |
|
QEA-01 |
G1/8 |
40 |
32 |
28 |
12 |
14 |
|
QEA-02 |
G1/4 |
45 |
38 |
33.5 |
14 |
17 |
|
QEA-03 |
G3/8 |
55.5 |
47 |
39 |
15.5 |
22 |
|
QEA-04 |
G1/2 |
62 |
55 |
43 |
22 |
24 |
|
QEA-06 |
G3/4 |
91 |
66 |
53 |
35 |
34 |
