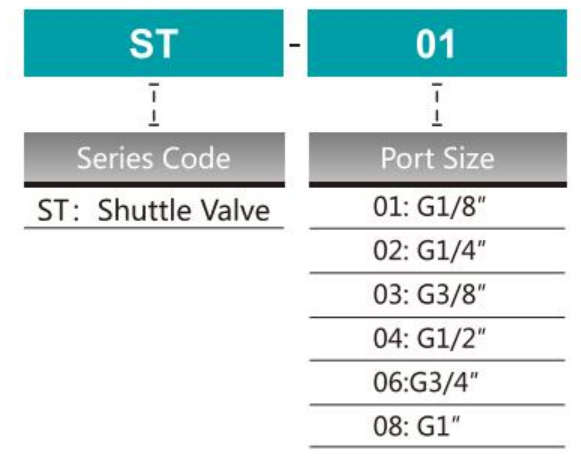

Bestellcode

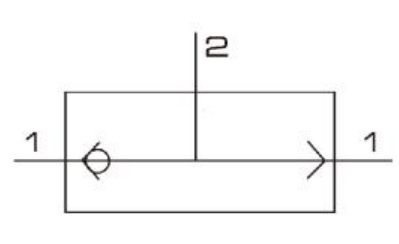

Symbol
Spezifikation
| Model | ST-01 | ST-02 | ST-03 | ST-04 | ST-06 | ST-08 |
| Arbeitsmedium | Luft | |||||
| Effektiver Querschnittsbereich | G1/8 " | G1/4 " | G3/8 " | G1/2 " | G3/4 " | G1 " |
| Anschlussterminalgröße | 7,5 mm² | 21 mm² | 40 mm² | 60 mm² | 110 mm² | 190 mm² |
| Arbeitsdruck | 0 ~ 1,0 mPa | |||||
| Umgebungstemperatur | -20 ~ 70 ℃ | |||||

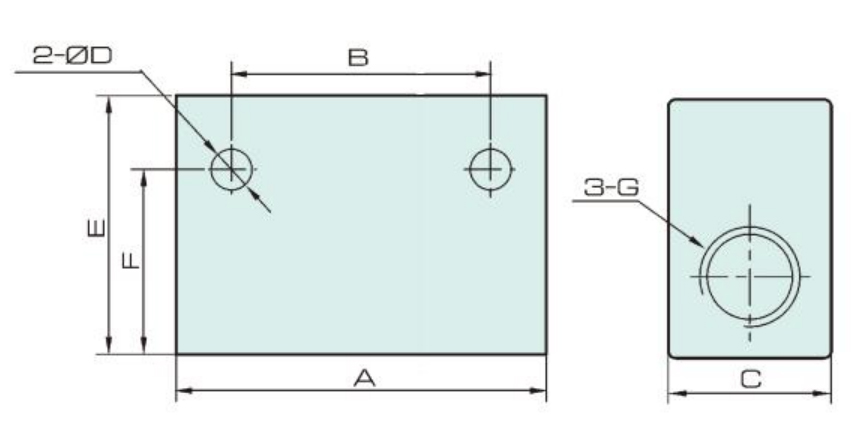

Gesamtdimension
Dimension
|
Model/Symbol |
A |
B |
C |
D |
E |
F |
G |
|
ST-01 |
40 |
24 |
16 |
4.3 |
25 |
20.5 |
G1/8 " |
|
ST-02 |
50 |
35 |
22 |
5.5 |
35 |
25 |
G1/4 " |
|
ST-03 |
70 |
48 |
35 |
7 |
50 |
42 |
G3/8 " |
|
ST-04 |
70 |
48 |
35 |
7 |
50 |
42 |
G1/2 " |
|
ST-06 |
110 |
72 |
40 |
7 |
70 |
58 |
G3/4 " |
|
ST-08 |
110 |
72 |
40 |
7 |
70 |
58 |
G1 " |
